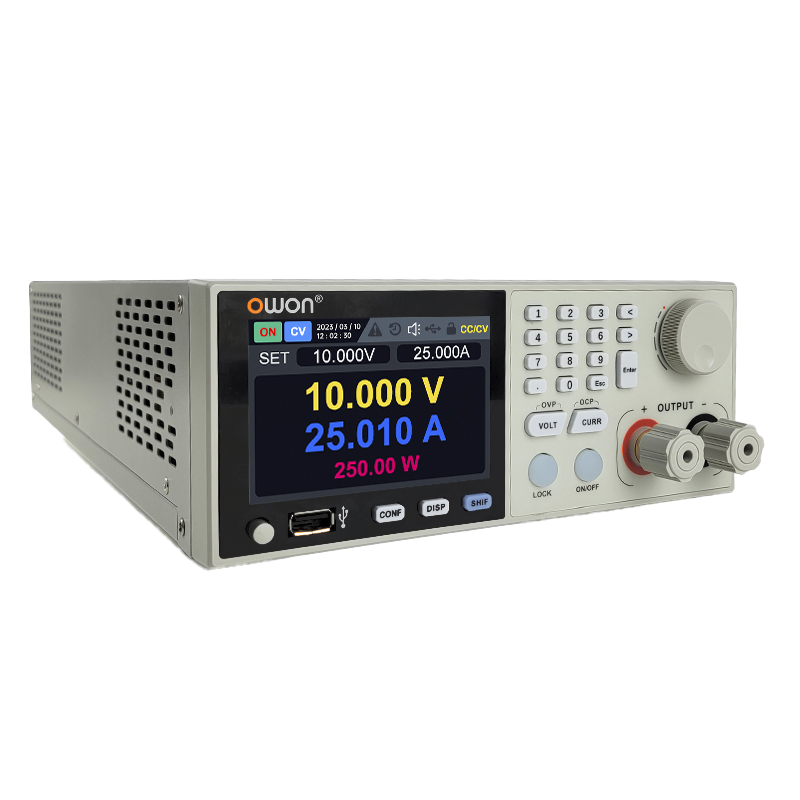

OWH67 Series High Power DC Power Supply
+ 1/2 2U standard 19-inch rack
+ Supports wide voltage input (85V-265V) to meet the needs of different countries
+ High precision constant power output of 1200W - 6000W，wider output voltage/current range
+ High output resolution 10mV / 1mA
+ Supports 100-step LIST waveform programmable output
+ CV / CC priority, with adjustable rise/fall time
+ Built-in discharge circuit for output
+ Supports SCPI, USB serial communication for remote control
+ Supports photovoltaic simulator output function, embedded with EN50530, Sandia and other PV standard curves for direct evaluation of PV inverter MPPT efficiency(optional)
+ Supports analog input and output as well as dry contact functionality
+ 3.9" TFT LCD, capable of real-time display of voltage/currentcurves and online recording of 1-minute data, achieving integrated source-meter functionality, convenient for locating and capturing load anomalies.
PDF Export
E-mail Us
The specifications based upon the instrument having run for at least 30 minutes continuously, under the specified operating environment
|
Model |
OWH67012 |
OWH67018 |
OWH67020 |
OWH67030 |
OWH67060 |
||
|
Power |
1200W |
1800W |
2000W |
3000W |
6000W |
||
|
Power Supply |
85V-265Vac；50/60Hz |
||||||
|
Load Regulation ±(％of Output+Offset) (10%-90%) |
CV |
≤0.03%+0.03%FS |
|||||
|
CC |
≤0.05%+0.05%FS |
||||||
|
linear Regulation ±(％of Output+Offset) |
CV |
≤0.03%+0.03%FS |
|||||
|
CC |
≤0.05%+0.05%FS |
||||||
|
Settings Resolution |
10mV/1mA |
||||||
|
Readback Resolution |
1mV/1mA |
||||||
|
Setting Accuracy(25℃±5℃) (within 12 months) |
Voltage：≤0.05% + 0.05%FS ; Current：≤0.1% + 0.1%FS |
||||||
|
Readback Accuracy(25℃±5℃) |
Voltage：≤0.05% + 0.05%FS ; Current：≤0.1% + 0.1%FS |
||||||
|
Noise/Ripple(*) |
Voltage |
≤0.1%FS Vp-p |
|||||
|
Current |
≤50mArms |
≤50mArms |
≤30mArms |
≤50mArms |
≤50mArms |
||
|
Temperature Coefficient (0℃ - 40℃) |
Voltage |
100ppm/℃ |
|||||
|
Current |
200ppm/℃ |
||||||
|
Readback Temperature Coefficient |
Voltage |
100ppm/℃ |
|||||
|
Current |
200ppm/℃ |
||||||
|
Recovery Time (0%~100% rated load) |
≤5ms |
||||||
|
Operation Temperature |
0-40℃ |
||||||
|
Display |
3.9 inch LCD |
||||||
|
Interface |
RS485, USB, CAN, DB25, LAN(optional) |
||||||
|
Size（W*H*D mm） |
214.6 x 88.0 x 453.0 |
|
|||||
|
Weight |
6.4kg |
6.8kg |
6.8kg |
6.8kg |
13kg |
||
|
Order No. |
Order Information |
|
OWH67012-80 |
0-80.000V/0-30.000A/1200.0W; 1CH |
|
OWH67012-150 |
0-150.000V/0-20.000A/1200.0W;1CH |
|
OWH67012-300 |
0-300.000V/0-10.000A/1200.0W;1CH |
|
OWH67018-150 |
0-150.000V/0-30.000A/1800.0W;1CH |
|
OWH67020-150 |
0-150.000V/0-20.000A/2000.0W;1CH |
|
OWH67020-300 |
0-300.000V/0-10.000A/2000.0W;1CH |
|
OWH67020-600 |
0-600.000V/0-10.000A/2000.0W;1CH |
|
OWH67030-150A |
0-150.000V/0-40.000A/3000.0W;1CH |
|
OWH67030-150 |
0-150.000V/0-30.000A/3000.0W;1CH |
|
OWH67030-300 |
0-300.000V/0-15.000A/3000.0W;1CH |
|
OWH67030-600 |
0-600.000V/0-10.000A/3000.0W;1CH |
|
OWH67060-300 |
0-300.000V/0-30.000A/6000.0W;1CH |
|
OWH67060-600 |
0-600.000V/0-20.000A/6000.0W;1CH |
|
OWH67060-1200 |
0-1200.000V/0-10.000A/6000.0W;1CH |
|
OWH67-L |
LAN port |
|
OWH67-S |
Solar Panel Simulator |
The accessories subject to final delivery.
-

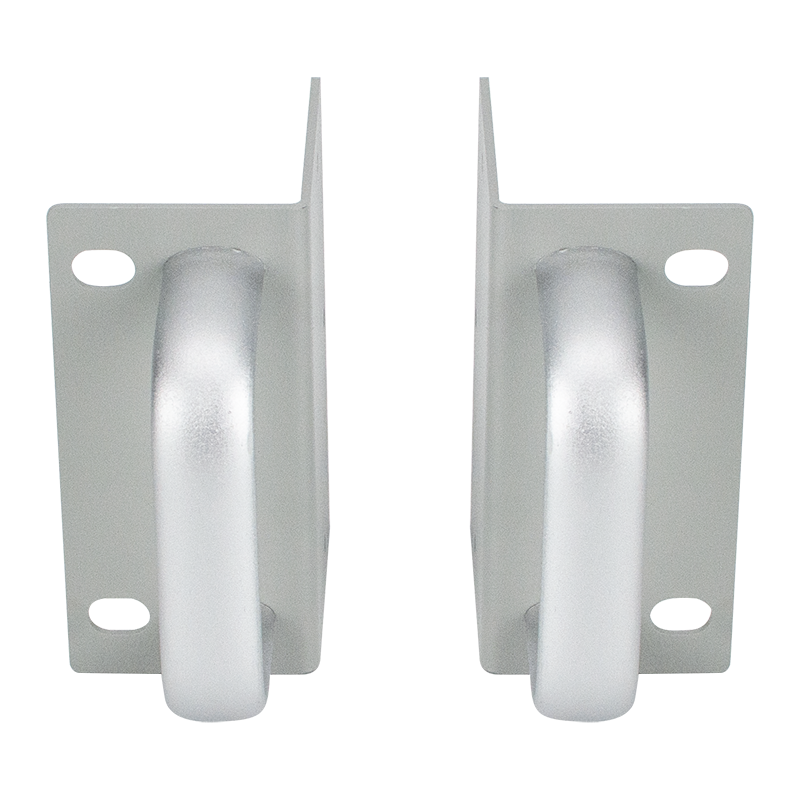

Handle -
Power Cord -
USB Cable -
User Manual
