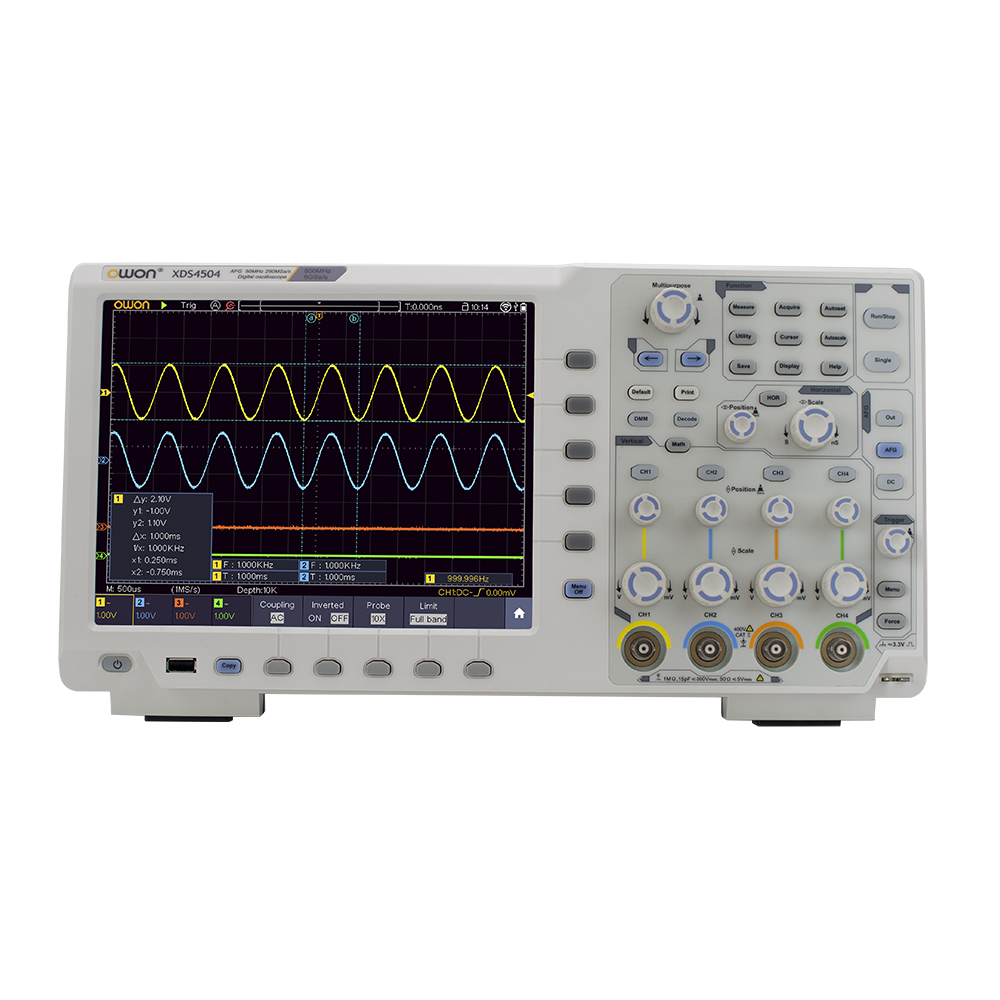

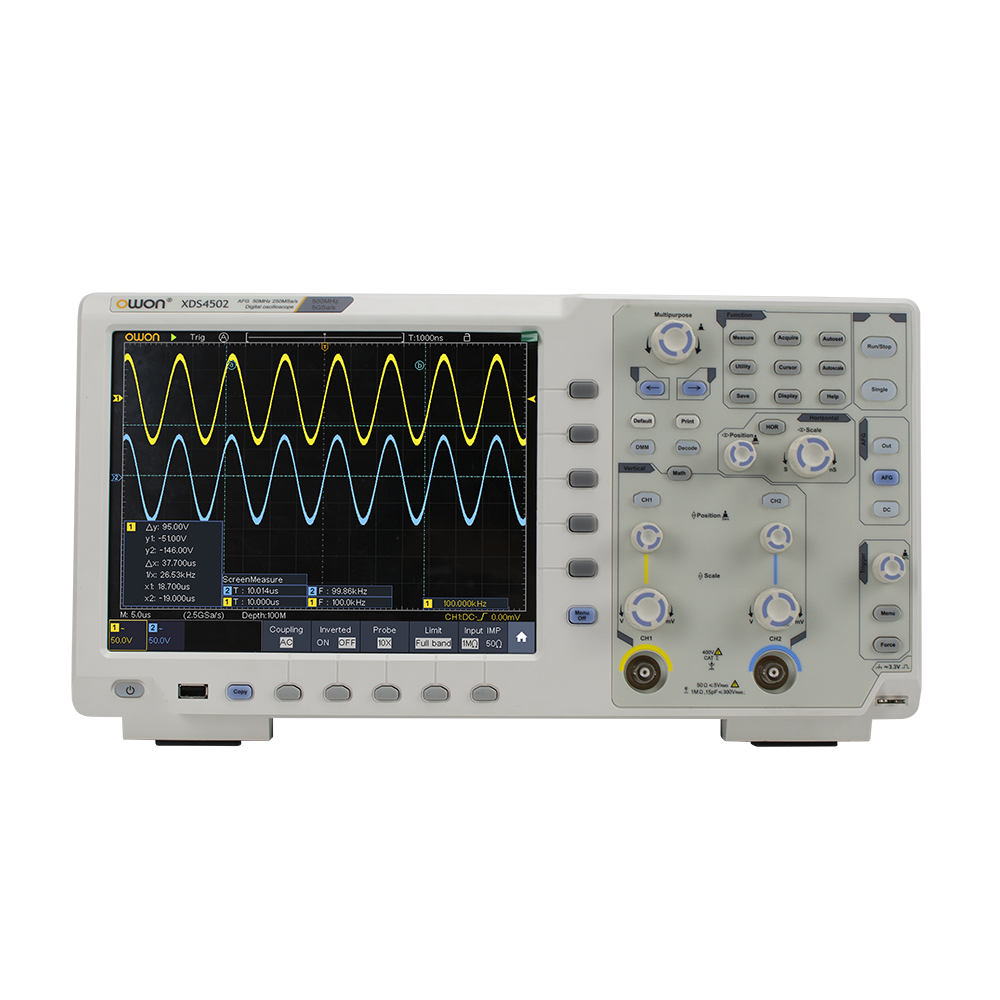

OWON XDS4000 Series 350MHz-500MHz Digital Oscilloscope

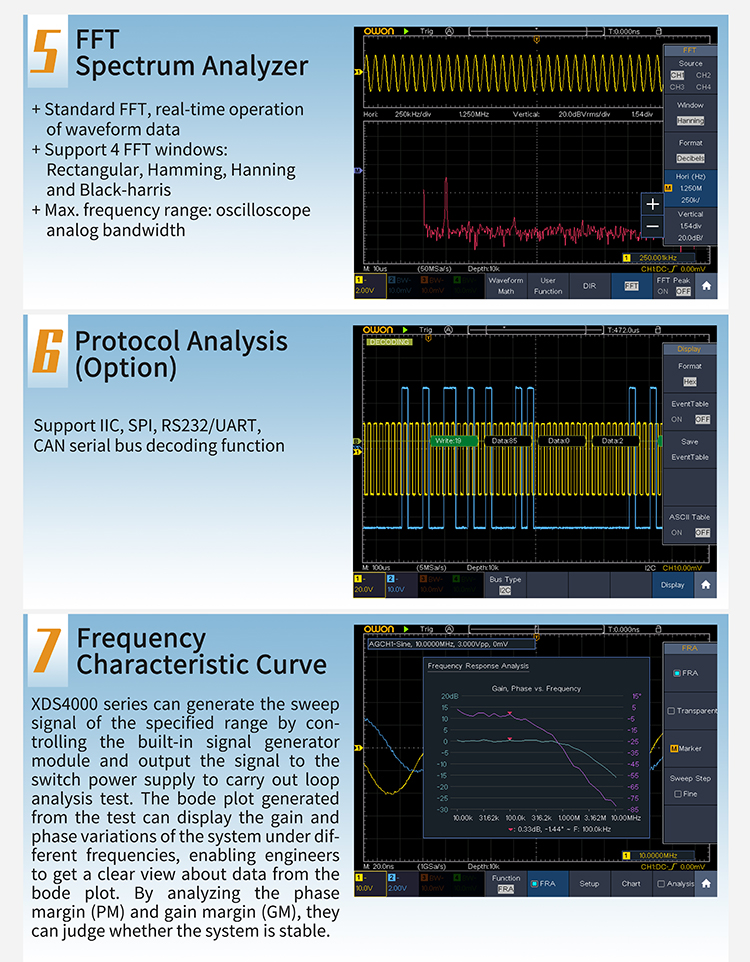

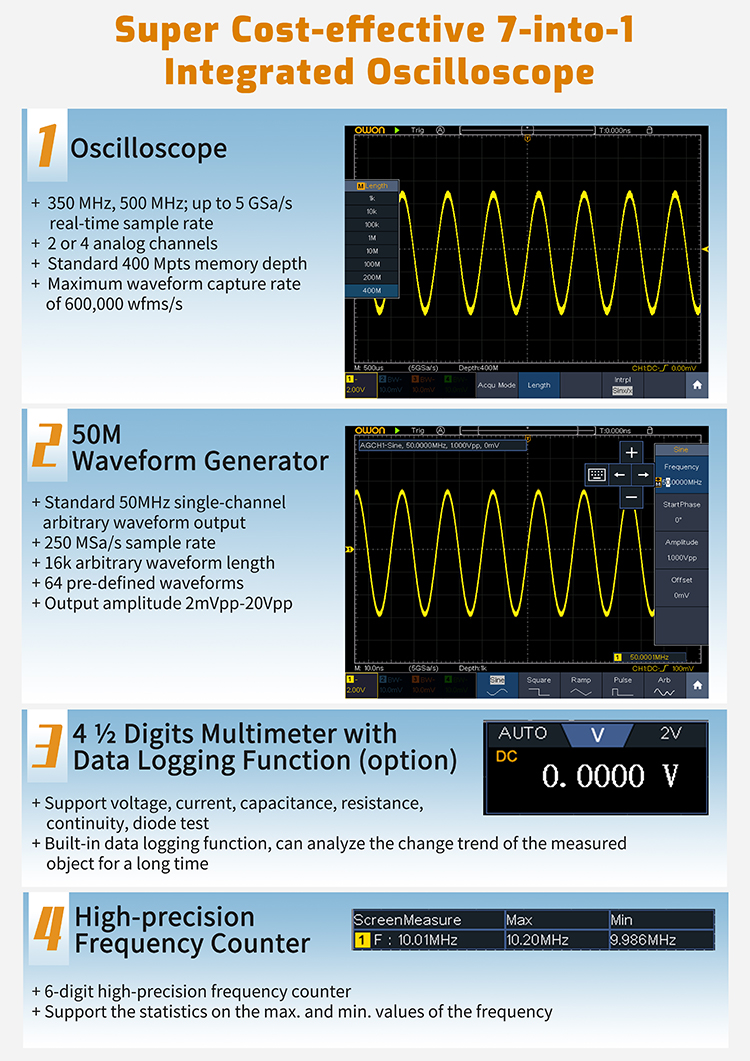

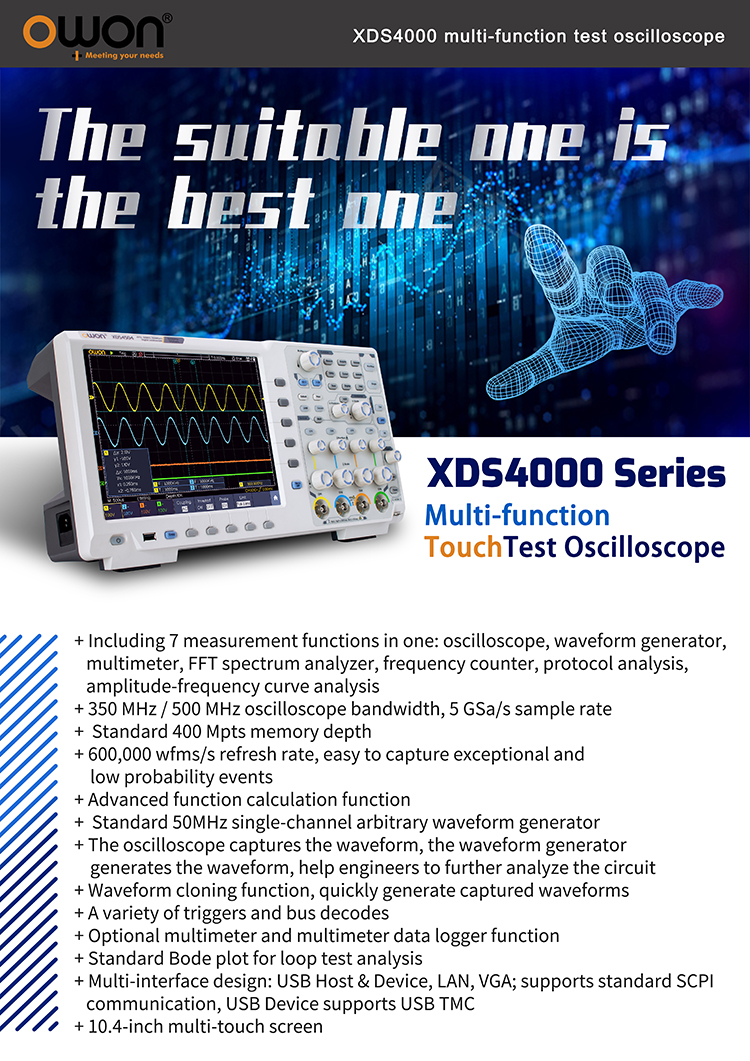

+ Including 7 measurement functions in one: oscilloscope, waveform generator, multimeter, FFT spectrum analyzer, frequency counter, protocol analysis, amplitude-frequency curve analysis

+ 350 MHz / 500 MHz oscilloscope bandwidth, 5 GSa/s sample rate

+ Standard 400MB memory depth

+ 600,000 wfms/s refresh rate, easy to capture exceptional and low probability events

+ Advanced function calculation function

+ Standard 50M single-channel arbitrary waveform generator

+ The oscilloscope captures the waveform, the waveform generator generates the waveform, help engineers to further analyze the circuit

+ Waveform cloning function, quickly generate captured waveforms

+ A variety of triggers and bus decodes

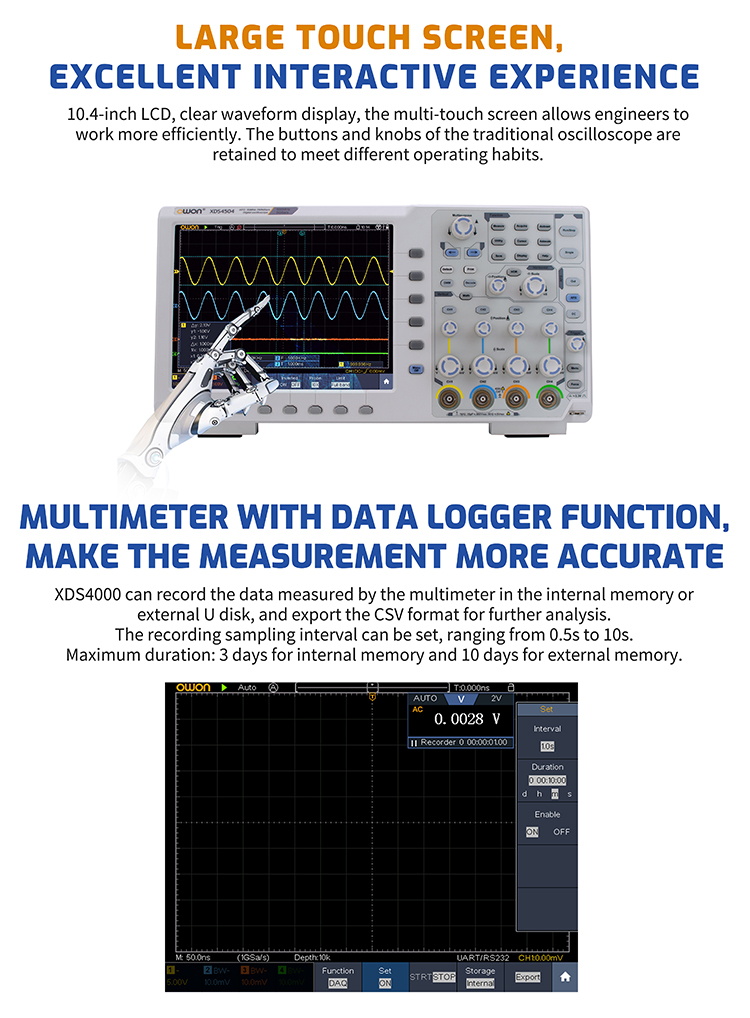

+ Optional multimeter and multimeter data logger function

+ Standard Bode plot for loop test analysis

+ Multi-interface design: USB Host & Device, LAN, VGA; USB Host supports standard SCPI

+ 10.4-inch multi-touch screen

Send Inquiry
Product Details


Specifications

Model

XDS4352

XDS4502

XDS4354

XDS4504

Bandwidth

350MHz

500MHz

350MHz

500MHz

 Sample Rate

5GS/s

 Horizontal Scale (s/div)

500ps/div - 1000s/div, step by 1 - 2 - 5

 Channel

2

4

 Display

10.4 inch LCD touch screen

Record length

400M

Waveform Refresh Rate

600,000 wfms/s

Vertical Sensitivit

1MΩ :1mV/div~ 10V/div;50Ω : 1mV/div ~ 1V/div

Vertical Resolution (A/D)

8bits

Input impedance

1MΩ±2%,in parallel with 15pF±5pF;50Ω ± 2%

Input coupling

DC, AC, Ground

Trigger type

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, CAN

Decoding Type (optional)

RS232, I2C, SPI, CAN

Automatic measurement

Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, FRR、FRF、FFR、FFF、LRR、LRF、LFR、LFF、Phase A→B, Phase A→B, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, and Cycle Area.

Waveform math

+, -, *, / ,FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function,
digital filter (low pass, high pass, band pass, band reject)

Waveform storage

100 waveforms

Communication interface

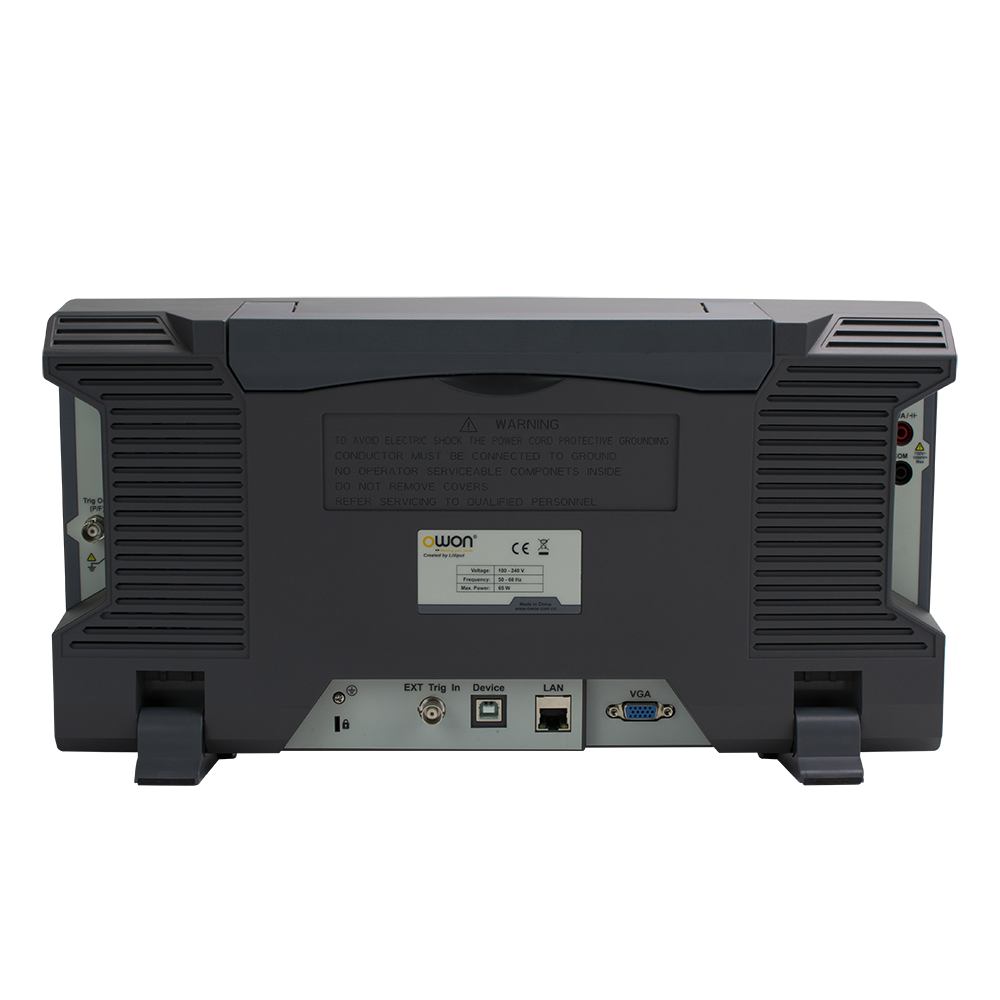

USB Host, USB Device; Trig Out(Pass/Fail); LAN port; VGA port; EXT Trig In

Printer compatibility

PictBridge

Dimension

422 mm (W)×226 mm (H)×135 mm (D)

Weight

Approx. 5 kg (without accessories)

Arb Waveform Generator Specifications

Max Frequency Output

50MHz

Sample Rate

250MS/s

Channel

1 channel

Vertical Resolution

14bits

Amplitude Range

2mVpp - 5Vpp(≦50MHz); 2mVpp - 20Vpp(≦25MHz)

Waveform Length

16K

Output Waveforms

Sine, Square, Pulse, Ramp, Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, Noise,and others, total 64 built-in waveforms, and user-defined arbitrary waveform

Multimeter Specifications (optional)

Full Scale Reading

4½ digits

Auto Range

Measure

Voltage, Current, Capacitance, Resistance, Frequency, Duty cycle, Continuity, Diode test

Support
Accessories

The accessories subject to final delivery.

  • Power Cord
  • CD Rom
  • Quick Guide
  • USB Cable
  • Probe
  • Probe Adjust
  • Multimeter Lead (optional)
