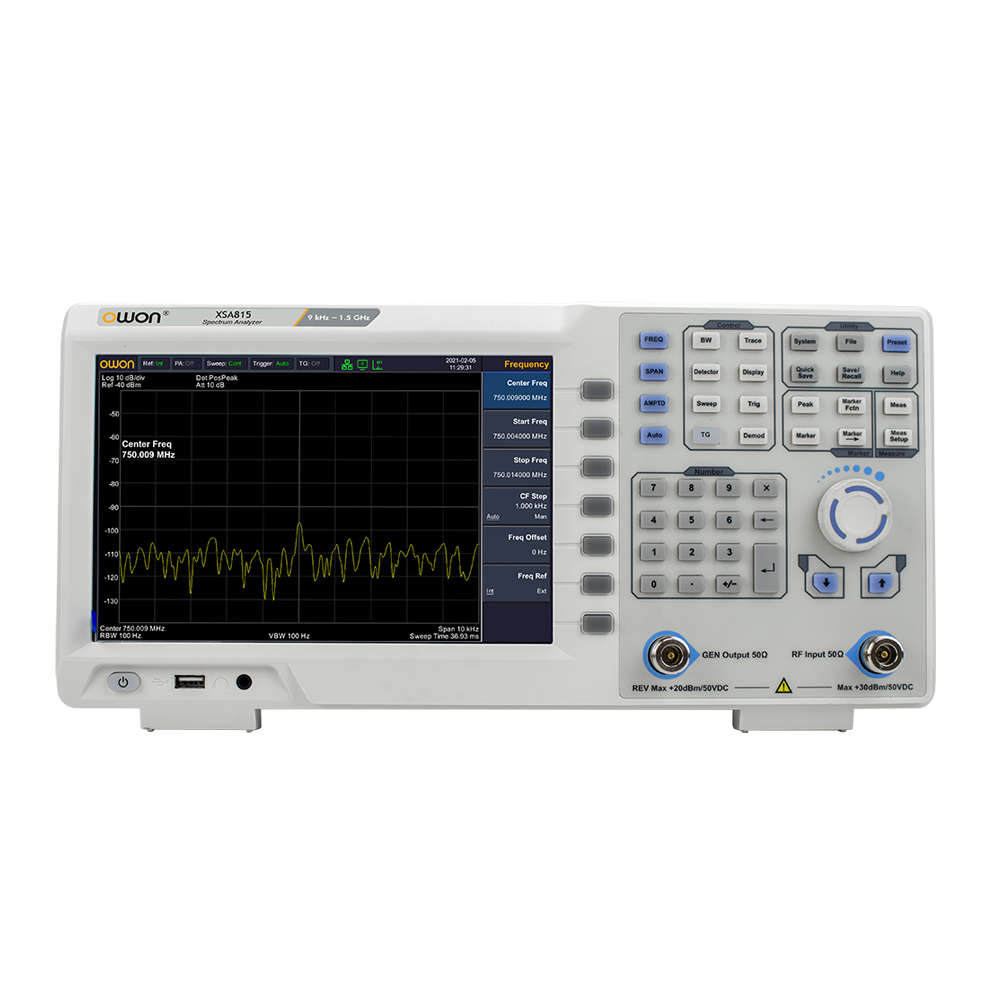

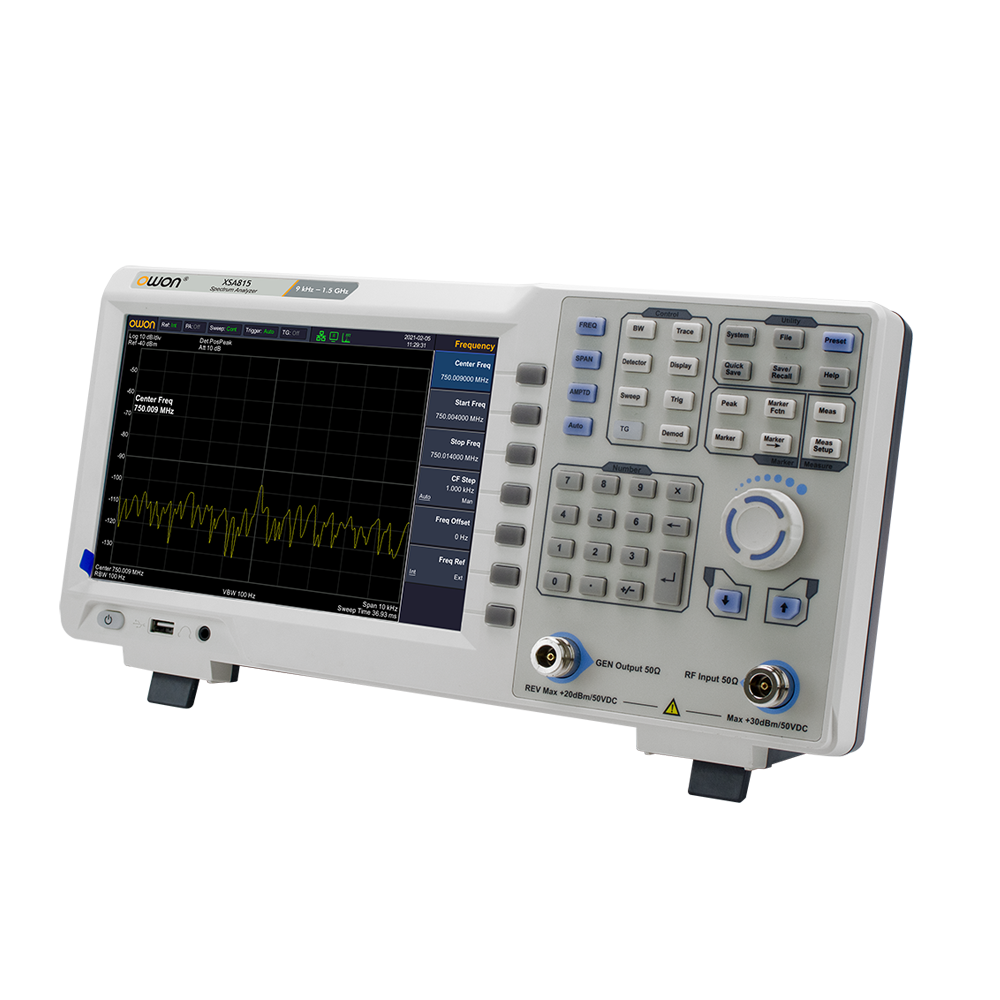

XSA800 Series Spectrum Analyzer

-  Frequency range 9kHz - 1.5GHz

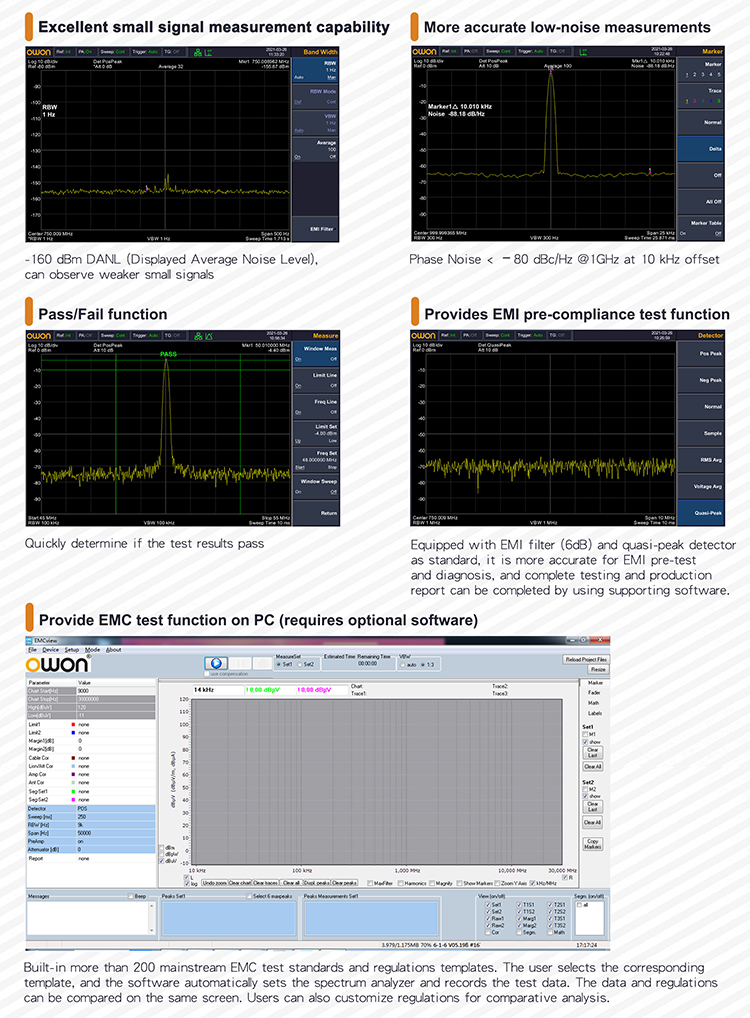

-  -160 dBm Displayed Average Noise Level (DANL)
-  Phase noise -80 dBc/Hz @1GHz and offset at 10 kHz
-  Total amplitude accuracy <0.7 dB

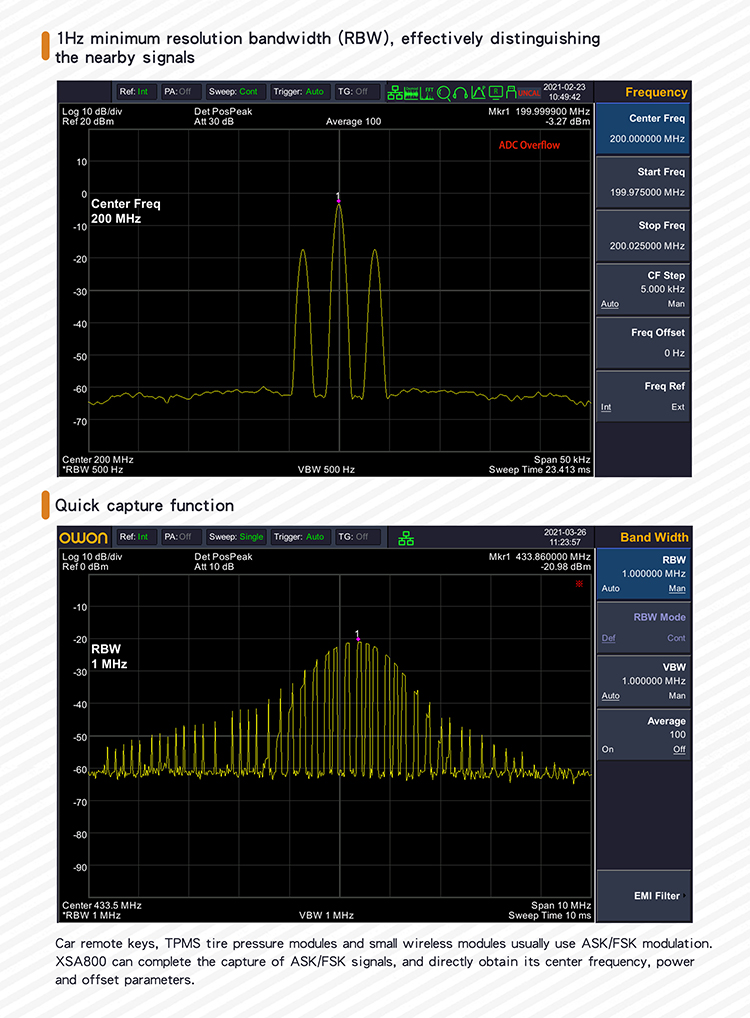

-  1 Hz minimum resolution bandwidth (RBW)
-  EMI pre-compliance test kit, optional EMC test software
-  Optional tracking generator (standard tracking generator
   hardware, can be remotely upgraded according to needs)

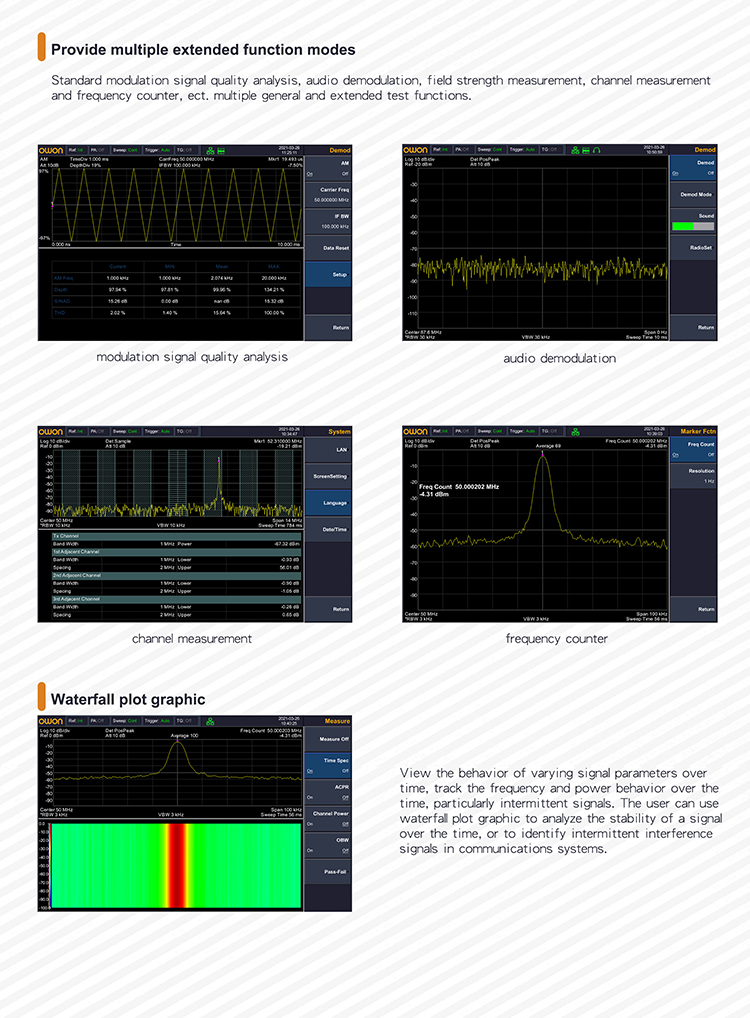

-  Waterfall plot graphic, modulation signal quality analysis,
   audio demodulation, ect. multiple general and extended
   test functions.
-  Standard Pass/Fail on-site test and alert function
-  Adopt all-digital intermediate frequency technology

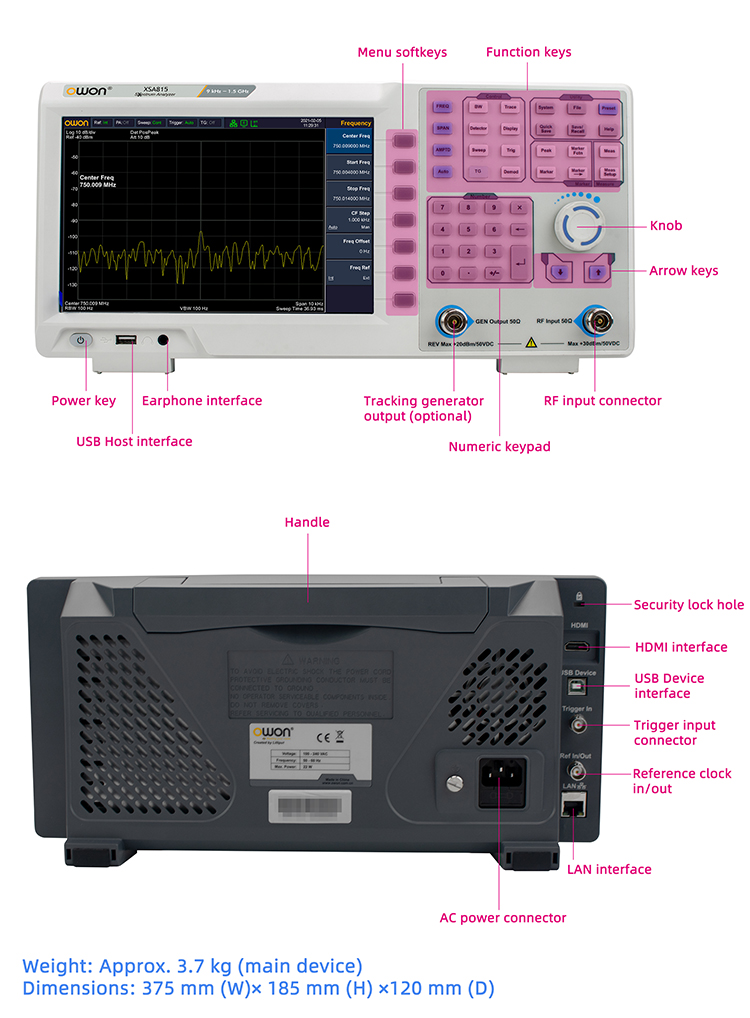

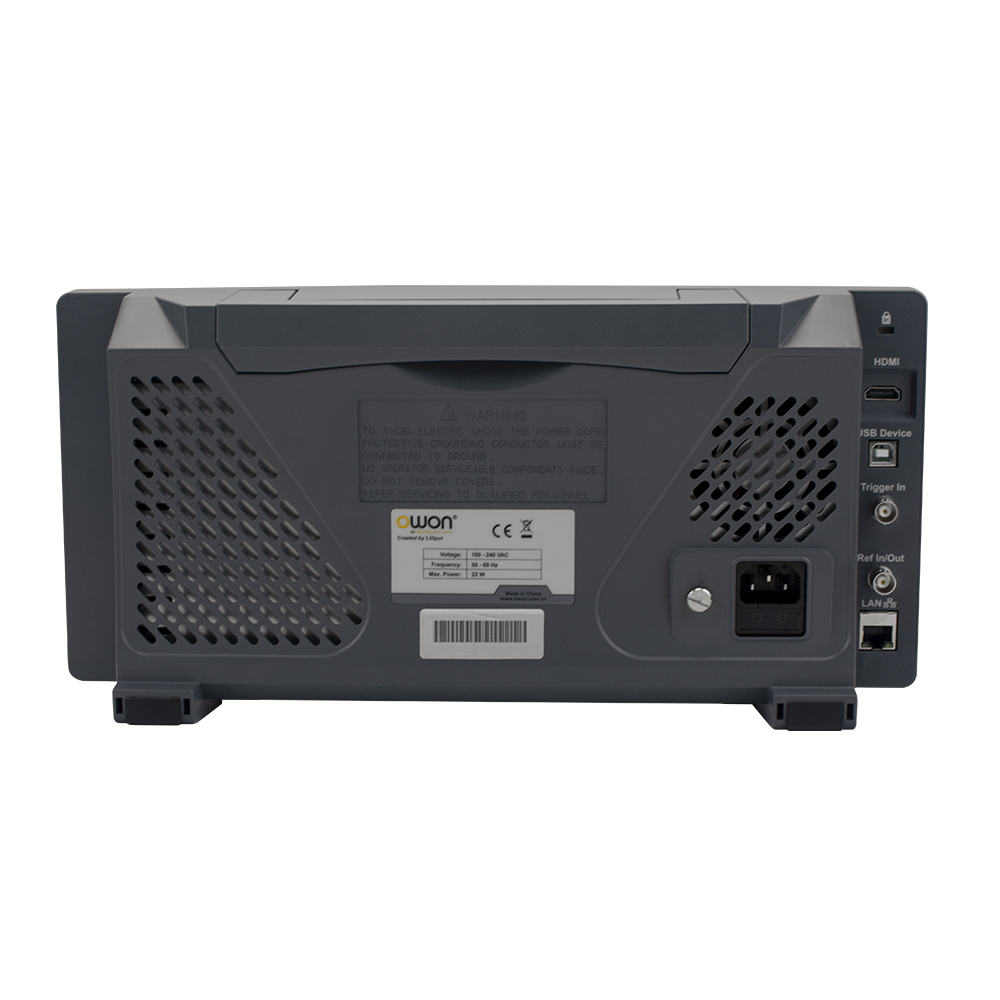

-  Multiple interfaces: USB Host, USB Device, LAN,
   earphone interface, HDMI
-  9-inch LCD, high resolution 1280×800 pixels

Send Inquiry
Product Details




Specifications

Frequency
Frequency Range  XSA805(TG) 9 kHz to 500 MHz
XSA810(TG) 9 kHz to 1 GHz
XSA815(TG) 9 kHz to 1.5 GHz
Frequency Resolution 1 Hz
Reference frequency aging rate < 1 ppm/year
Frequency Span
Span Range 0 Hz, 100 Hz to max frequency of instrument
Span Uncertainty ± span / (sweep points-1)
SSB Phase Noise(20 to 30, fc = 500 MHz)
Carrier Offset 10 kHz < -80 dBc/Hz
100 kHz < -100 dBc/Hz
1 MHz < -115 dBc/Hz
Bandwidth
Resolution Bandwidth(-3 dB) 1 Hz to 1 MHz, in 1-3-5-10 sequence
Resolution Bandwidth (-6 dB) (EMI) 200 Hz, 9 kHz, 120 kHz, 1 MHz
RBW Accuracy < 5% typical
Resolution Filter Shape Factor (60 dB : 3 dB) < 5 typical
Video
Bandwidth (-3 dB)
10 Hz to 1 MHz, in 1-3-5-10 sequence
Amplitude and level
Amplitude measurement range DANL to +10 dBm, 100 kHz to 10 MHz, Preamp Off
DANL to +20 dBm, fc ≥ 10 MHz, Preamp Off
Reference Level -80 dBm to +30 dBm, 0.01 dB by step
Preamp 20 dB, nominal, 100 kHz to 1.5 GHz
Input Attenuator  XSA805(TG)
XSA810(TG)
XSA815(TG)
0 to 40 dB, 1 dB by step
Display Average Noise Level (Input attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, 20 to 30, input impedance = 50 Ω)
Preamp Off 9 kHz to 1 MHz -95 dBm (Typical), <-88 dBm
1 MHz to 500 MHz -140 dBm (Typical), <-130dBm
XSA810(TG) 500 MHz to 1 GHz
XSA815(TG) 500 MHz to 1.5 GHz -138 dBm (Typical), <-128 dBm
Preamp On 100 kHz to 1 MHz -135 dBm (Typical), <-128 dBm
1 MHz to 500 MHz -160 dBm (Typical), <-150 dBm
XSA810(TG) 500 MHz to 1 GHz
XSA815(TG) 500 MHz to 1.5 GHz -158 dBm (Typical), <-148 dBm
Level Display
Trace detectors positive-peak, negative-peak, normal, sample, RMS, voltage average, quasi-peak
Trace functions clear write, max hold, min hold, average, view, blank, trace math
Units of level axis dBm, dBμW, dBpW, dBmV, dBμV, W, V
Frequency response
(fc ≥ 100 kHz, 20 to 30,30% to 70% relative humidity, input attenuation=10 dB, reference frequency= 50 MHz)
Preamp Off <0.7 dB
Preamp On <1.0 dB
Difference and Accuracy
Uncertainty fc = 50 MHz, peak detector, preamplifier off, attenuation = 10 dB, input signal level = -10 dBm, 20℃ to 30℃
< 0.4 dB
Level Measurement Uncertainty
Level measurement uncertainty 95% confidence level, S/N > 20 dB, RBW = VBW = 1 kHz, preamplifier off, attenuation = 10 dB, -50 dBm < input level ≤ 0 dBm, fc > 10 MHz, 20℃ to 30℃
< 0.7 dB
Tracking Generator (optional)
Frequency Range  XSA805(TG) 100 kHz to 500 MHz
XSA810(TG) 100 kHz to 1 GHz
XSA815(TG) 100 kHz to 1.5 GHz
Output power
level range
-40 dBm to 0 dBm
Output level resolution 1 dB
Output flatness Relative to 50 MHz
± 3 dB
Tracking generator spurious Harmonic spurious -30 dBc (Tracking generator output power -10 dBm)
Non-harmonic spurious -40 dBc (Tracking generator output power -10 dBm)
Tracking generator to input terminal isolation -60 dB (Tracking generator output power 0 dBm)
Interface
USB Host, USB Device, LAN, earphone interface, HDMI
Display
9-inch TFT LCD, 1280 x 800 pixels
Appearance
Dimensions 375 mm (W) × 185 mm (H) × 120 mm (D)
Weight Approx. 3.7 kg (main device)

Support
Accessories

The accessories subject to final delivery.

  • Power Cord
  • Quick Guide
  • USB Cable
  • N-N Cable (optional)
  • N-SMA Cable (optional)
  • SMA-SMA Cable (optional)
  • SMA Adaptor (optional)
  • Near Field Probe (optional)
  • N-SMA Adaptor (optional)
